New Samba III by Convectair
The Samba III combines the silent operation of convection heat with the power of a fan-forced heater. It offers a total power of 2000W controlled by an ultra-precise electronic thermostat. Its cast-aluminum front combines elegance and durability, making this unit an ideal choice for bathrooms and hallways.
Features
Color
Standard: white.
Optional (upcharge applicable): almond, metallic silver, bronze, metallic charcoal, aluminum, semi-gloss black, sand.
Custom colors available upon request.
Finish
Standard: epoxy/polyester powder paint.
Voltage
240V, 1-phase.
Construction
Cast aluminum front cover.
Steel bar grilles prevent the insertion of foreign objects; smooth-finish paint is washable and anti-yellowing.
High-limit temperature control with automatic reset.
Built-in white LED night light.
Fan
Quiet squirrel-cage fan.
Factory-lubricated motor.
Heating element
Helical coil nickel-chromium alloy wire protected by ceramic insulators.
Heating element provides instant heat.
Control
Built-in electronic digital thermostat/timer, located at the top of the unit.
Thermostat mode: pulse modulation: automatic convection to fan-forced switch-over at 1000W.
Timer mode: 5-30 minutes full power fan-forced boost.
Installation
May be surface-mounted without adaptor or recessed in 2 in. X 3 in. stud partitions.
Mounting holes for ease of installation.
Large wiring compartment.
Warranty
5-year warranty against defects.
Application
Bathroom, kitchen, living room, family room, entrance way.
| Recommended installation height | |
|---|---|
| in. | mm |
| 12 | 305 |
| Minimum Clearances | |||||||
|---|---|---|---|---|---|---|---|
| Front | Sides | Above | Below | ||||
| in. | mm | in. | mm | in. | mm | in. | mm |
| 48 | 1200 | 1 | 25 | 36 | 914 | 4 | 102 |
Cast Aluminum Cover

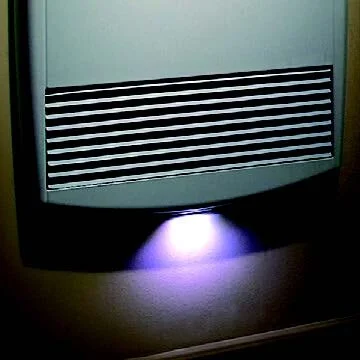

Built-in night light
Built-in Thermostat
